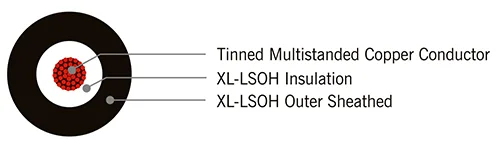

Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components in the photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside. All sizes of solar cables from 0.5 SQMM to 240 SQMM are available, SOLAR Cables are generally in three type of variety as stated below:



(1) As Per TUV Specifications-2 Pfg 1169/08.2007


Solar DC Cables from PV Module to Array Juntion Box (as per TUV Specifications-2 Pfg 1169/08.2007)

Single Core Size in Sq.mm Max. Conductor Diameter in mm XL-LSOH Insulation Thickness-Nominal in mm XL-LSOH Sheathing Thickness-Nominal in mm Overall Dia. Nominal in mm
1.5 0.26 0.7 0.9 5.0 +/-0.5
2.5 0.26 0.7 0.9 5.5 +/-0.5
4 0.31 0.7 0.9 6.0 +/-0.5
6 0.31 0.7 0.9 6.5 +/-0.5
Solar DC Cables from Array Junction Box to Main Juntion Box & MJB to Inverter (as per TUV Specifications-2 Pfg 1169/08.2007)
10 0.41 0.7 0.9 7.5 +/-0.5
16 0.41 0.7 0.9 8.5 +/-0.5
25 0.41 0.9 1 10.5 +/-0.7
35 0.41 0.9 1.1 12.0 +/-0.7
50 0.41 1 1.2 14.0 +/-0.7
70 0.51 1.1 1.3 16.0 +/-1.0
95 0.51 1.1 1.5 18.5 +/-1.0
120 0.51 1.2 1.6 20.0 +/-1.0
150 0.51 1.4 1.7 22.5 +/-1.0
185 0.51 1.6 1.9 25.0 +/-1.0
240 0.51 1.7 2.1 28.0 +/-1.0


(2) As Per IS 694 & IS 1554 Part I guidelines


Solar DC Cables from PV Module to Array Juntion Box (as per IS 694 & IS 1554 Part I guidelines)
Single Core Size in Sq.mm Max. Conductor Diameter in mm HR 105°C PVC Insulation Thickness-Nominal in mm UV HR 105°C PVC Sheathing Thickness-Nominal in mm Overall Dia. Nominal in mm
1.5 0.26 0.6 0.9 5.0 +/-0.5
2.5 0.26 0.7 0.9 5.5 +/-0.5
4 0.31 0.8 0.9 6.5 +/-0.5
6 0.31 0.8 0.9 7.0 +/-0.5
Solar DC Cables from Array Junction Box to Main Juntion Box & MJB to Inverter (as per IS 694 & IS 1554 Part I guidelines)
10 0.41 1.0 0.9 8.5 +/-0.5
16 0.41 1.0 0.9 9.5 +/-0.5
25 0.41 1.2 1.0 11.0 +/-0.7
35 0.41 1.2 1.1 12.5 +/-0.7
50 0.41 1.4 1.3 15.0 +/-0.7
70 0.51 1.4 1.4 17.0 +/-1.0
95 0.51 1.6 1.5 19.5 +/-1.0
120 0.51 1.6 1.6 21.0 +/-1.0
150 0.51 1.8 1.8 23.5 +/-1.0
185 0.51 2.0 1.9 25.5 +/-1.0
240 0.51 2.2 2.2 29.5 +/-1.0


(3) As Per IS 7098 Part I guidelines


Solar DC Cables from PV Module to Array Juntion Box (as per  IS 7098 Part I guidelines)
Single Core Size in Sq.mm Max. Conductor Diameter in mm XLPE Insulation Thickness-Nominal in mm UV PVC Sheathing Thickness-Nominal in mm Overall Dia. Nominal in mm
1.5 0.26 0.6 0.9 5.0 +/-0.5
2.5 0.26 0.7 0.9 5.5 +/-0.5
4 0.31 0.8 0.9 6.5 +/-0.5
6 0.31 0.8 0.9 7.0 +/-0.5
Solar DC Cables from Array Junction Box to Main Juntion Box & MJB to Inverter (as per IS 7098 Part I guidelines)
10 0.41 1.0 0.9 8.5 +/-0.5
16 0.41 1.0 0.9 9.5 +/-0.5
25 0.41 1.2 1.0 11.0 +/-0.7
35 0.41 1.2 1.1 12.5 +/-0.7
50 0.41 1.4 1.3 15.0 +/-0.7
70 0.51 1.4 1.4 17.0 +/-1.0
95 0.51 1.6 1.5 19.5 +/-1.0
120 0.51 1.6 1.6 21.0 +/-1.0
150 0.51 1.8 1.8 23.5 +/-1.0
185 0.51 2.0 1.9 25.5 +/-1.0
240 0.51 2.2 2.2 29.5 +/-1.0
