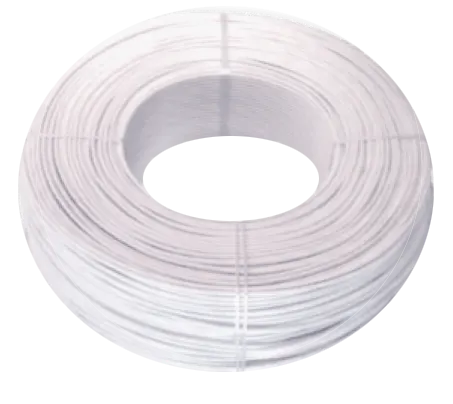

Submersible Winding Wires
We also offer poly wrapped winding wire commonly known as "Submersible Copper Winding Wire". The copper conductor is wrapped with thin polyester film and Biaxial oriented poly propylene (BOPP) films. The most modern plant with sophisticated wrapping heads and heat shrinkage furnace is installed to get uniform covering. A complete quality assurance testing by instruments covering all governing standards is available. The test standards followed are IS 8783:1995.
Application :
Used in submersible pumps motors of all sizes for domestic and industrial application.
Packaging :
Available in coil form with suitable length as per size, in polythene bag and packed in inner and outer corrugated boxes.
Special Salient Features :
- Saves energy - ETP grade high conductivity annealed copper used
- Tear resistant - High mechanical strength - High tensile strength
- Heat shock test-at 150°C
- Less current leakage - No air gap between the films.
- Each coil tested at 3500 V
- Easy winding - Resistance annealed copper and controlled OD
Testing Facilities :
The quality assurance having all the testing facilities with ultra-modern, high precision instruments and rigorous testing plans. Details of test which conforms to IS 8783 (Part 4/Sec. 3} is as follows.
Sr. No. | Name of the Tests | Units | Instruments Used |
---|---|---|---|
1 | Size (Diameters) | mm | Micrometer |
2 | Elongation | PercentagePercentage | Tensile tester |
3 | Conductor resistance | Ohm / KM | Resistance meter |
4 | Volume resistivity | Ohm - cm | Million mega meter |
5 | High voltage test | kV | High voltage tester |
6 | Thermal ageing | Change in elongation & tensile | Ageing oven and tensile tester |
7 | Shrinkage test | Percent | Circulating hot air oven |
8 | Water absorption | mg/cm2 | Vacuum oven and pump desecrator |
9 | Hot deformation | Percent | Circulating hot air oven |
10 | Heat shock test | No sign of cracks / scales / separation of layers | Circulating hot air oven and mandrels |
